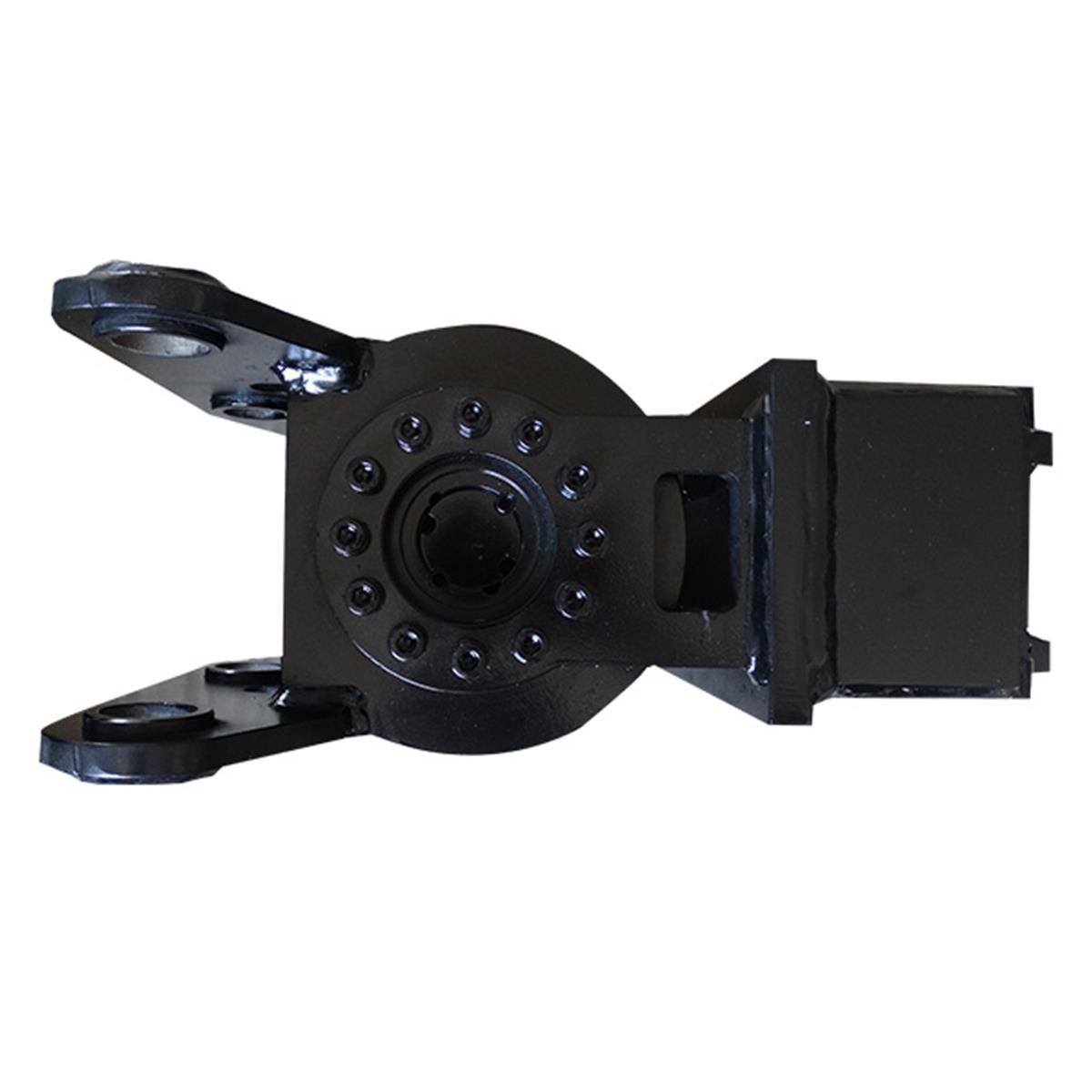

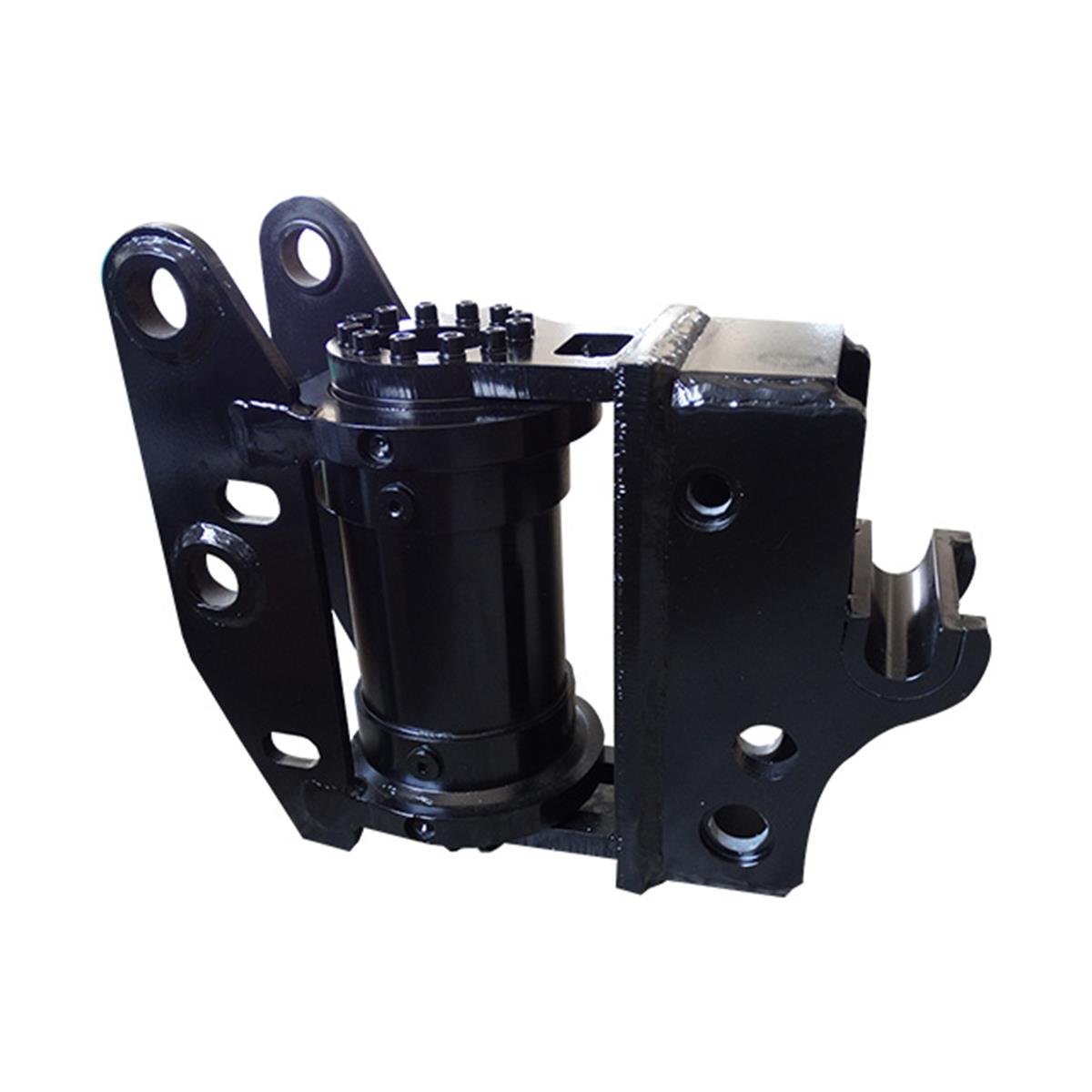

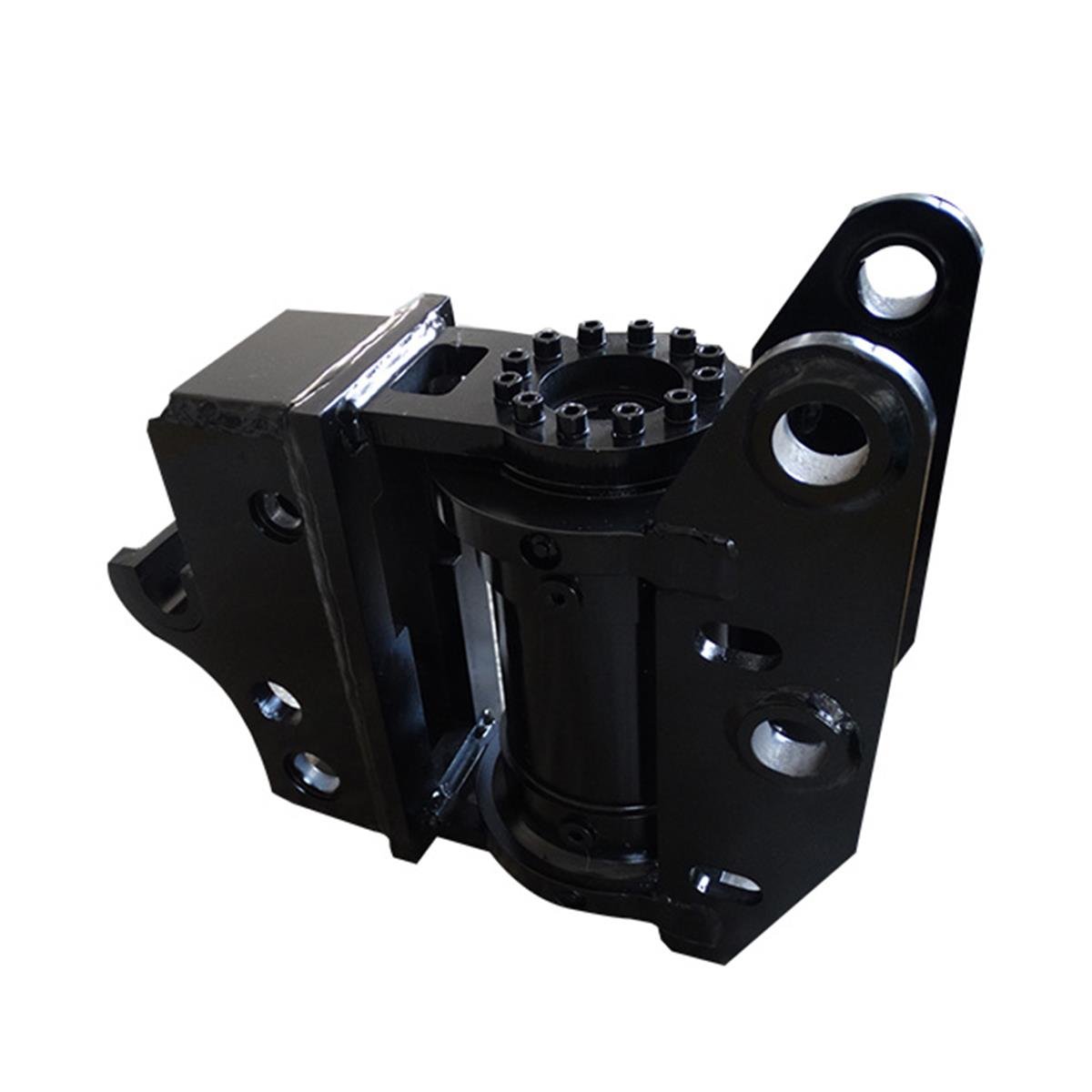

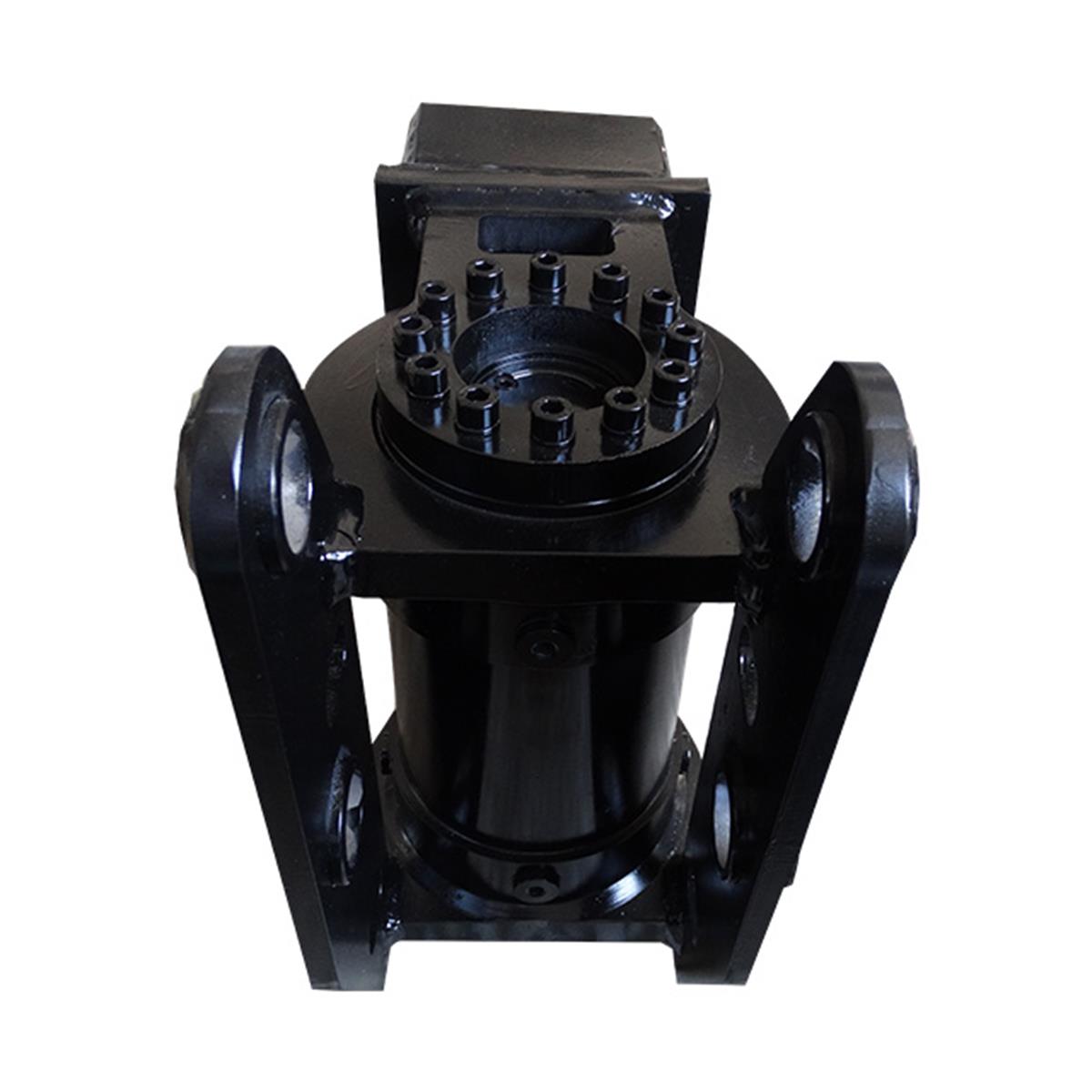

CY5 Series Rotary Actuator

Fiyat : $0.00

Seri 5 Tilt Quick Coupler 900-18000Nm@210bar 775 - 1650 cc @ 220/200 Degrees

:

CY1

MODELS 40 50 63 80 100 125 140 160 180 200 225 250 280 300
AK6 22 28 35 42 55 70 80 100 105 140 140 150 170 180
B 98 110 128 150 178 222 250 278 298 325 385 450 490 555
Cf7 55 68 80 100 115 150 160 190 210 235 260 300 340 380
D 43 49 57 66 80 94 105 127 138 150 224 240 266 285
E 65 72 87 108 130 167 187 206 226 255 300 346 394 440
F 75 82 95 118 147 183 210 240 270 295 350 385 435 470
G 2 2 5 5 5 7 5 5 5 5 5 10 10 10
H 45 56 70 100 100 125 140 200 200 200 250 280 280 280
I 8 8 10 12 16 20 22 28 28 32 36 36 40 45
J 14 17 20.5 24 31.5 39.5 45 56 58.3 67 78 83 94 100
K 84 90 108 130 155 195 220 245 265 290 345 400 450 500
L 50 60 80 110 110 140 150 210 210 210 260 300 300 300
M 3 3 3 3 4 4 7 5 5 4 6 6 6 6
N 4 4 5 6 6 8 10 12 12 10 15 20 20 20
O 16 18 25 30 31 37 40 43 47 54 64 90 100 110
P 99+0.2778α 102+0.3444α 104+0.5333α 134+0.5889α 171+0.7778α 151+1.3389α 205+1.0889α 254+1.2167α 392+0.9611α 293+1.6222α 408+1.8000α 545+1.8333α 580+2.3333α 620+2.4444α
Q 39 39 48 57 65 74 78 94 127 125 155 224 261 271
S G1/8 G1/8 G1/4 G3/8 G1/2 G1/2 G1/2 G3/4 G1 G1 G1 G1 G1 G1
T 60° 60° 60° 45° 45° 40° 40° 40° 40° 30° 22.5° 22.5° 18° 18°
Z 5 5 5 7 7 8 8 8 11 11 15 15 19 19
U 9 9 11 11 14 18 18 22 22 22 22 26 26 32
B1 26 30 35 40 50 62 62 82 100 100 120 120 130 140
H1 45 55 65 90 105 120 120 150 150 175 175 175 200 200
J1 7.8 10.1 14.1 18.3 24.3 31.8 34.4 42.4 42.4 52.9 56.4 61.4 67.4 78.4
C1 12 16 24 30 42 55 60 75 75 95 100 110 120 140
I1 4 5 8 8 12 16 18 20 20 25 28 28 32 36
Wf7 16 18 18 25 25 25 25 40 32 40 40 40 40 40
W1 10 10 10 16 16 16 16 25 25 25 25 25 25 25
P1 117+0.2778α 118+0.3444α 124+0.5333α 159+0.5889α 175+0.7778α 177+1.3389α 236+1.0889α 285+1.2167α 389+0.9611α 333+1.6222α 483+1.8000α 560+1.8333α 655+2.3333α 620+2.4444α
