CVIVXCN

Fiyat : $344.35

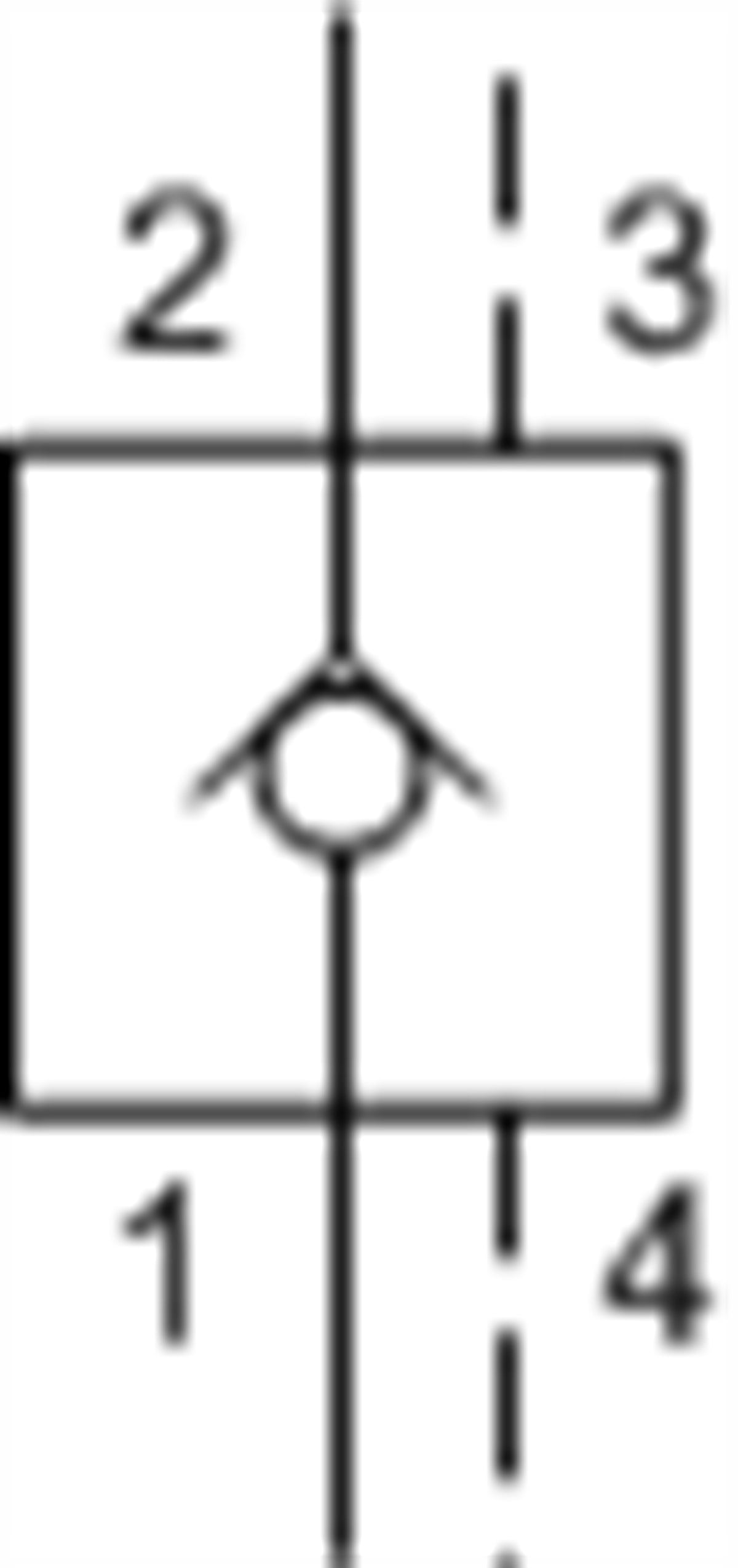

Vented pilot-to-open check valve

:
CVIV

Note: Data may vary by configuration. See CONFIGURATION section.
Cavity T-24A
Series 4
Capacity 120 gpm480 L/min.
Maximum Operating Pressure 5000 psi350 bar
Pilot Ratio 3:13:1
Maximum Valve Leakage at 110 SUS (24 cSt) 1 drops/min.0,07 cc/min.
Pilot Volume Displacement .30 in³4,9 cc
Pilot Passage into Valve .09 in.2,3 mm
Valve Hex Size 1 5/8 in.41,3 mm
Valve Installation Torque 350 - 375 lbf ft474 - 508 Nm
Model Weight 2.50 lb1,15 kg
Seal kit - Cartridge Buna: 990024007
Seal kit - Cartridge EPDM: 990024014
Seal kit - Cartridge Polyurethane: 990024002
Seal kit - Cartridge Viton: 990024006


CVIV
Yüksek Geçirgenlik
300-1000 lpm
